Features:

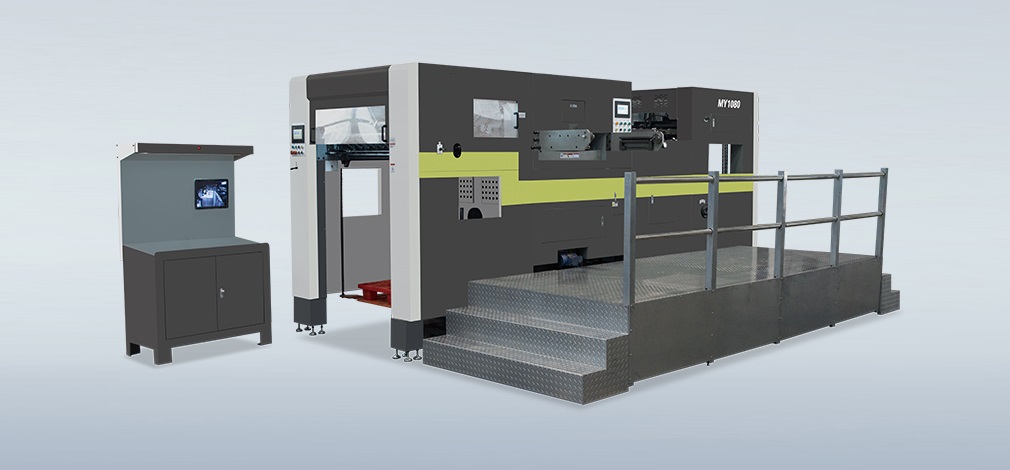

  • MY1080 automatic Flat to Flat die cutting machine is designed for folding boxes and corrugate boxes.
  • It’s fast speed, high precision and large die cutting pressure makes it a good choice for packaging industry.
  • Safe and convenient operation, stable performance.
  • The machine is PLC and touch screen controlled to make sure of high performance, long lifespan and low maintenance.
  • The machine is highly automatic, from feeding, to die cutting to stacking. There is counter and fault diagnosis on screen.
  • The precise cam assembly ensure the grippers work smoothly and ensure high precision of die cutting in long term.
  • The main drive is adjusted by inverter, low noise and power consumption.
  • The front guide is adjusted by step motor, easy and stable; the stacker joggers are adjusted by reduced motor.
  • The feeder uses 4-suction-five-delivery high speed feeder head, which is good for paperboard and corrugate board. The feeder is controlled separately from the die cutting station.

Specifications:

Max. Paper size1080x780mm
Min. Paper size400x360mm
Max. Die cutting size1070x770mm
Max. Die cutting speed7000S/H
Die cutting precision±0.10mm
Electricity380±10%VAC 50Hz
Max. Working pressure350KN
Compressed air≧0.25㎡/min  ≧0.6mpa
Loading height1700mm
Die cutting height adjustment2mm
Dies height23.8mm
Paper thicknessPaper board: 0.1—3mmCorrugate board：<5mm
Main motor power11KW
Total power16.7KW
DimensionMain machine: 4800x2070x2250mm
With pre-loading and pedal:  6800x3705x2250mm

Mechanical system:

Gripper chainJWIS, Germany
Drive chainRENOLD, UK
Main bearingsSKF, Switzerland；NSK, Japan
Clutch typeLow-voltage pneumatic clutch
Gripper safetyOverload safety(Taiwan) and limit switches
Feeder headHigh speed feeder head, 4-suction-5-delivery
Feeder driveStand alone control
GuideDouble side paper guide, push-pull type
Stacker samplingPneumatic, with air blow system
Feeder and stacker motorReduced motor
PumpZenloon， with temperature regulator
FilterZenloon WLP
Chain lubricationMultiple point auto lubrication
Front guide adjustmentElectric mode
Pressure adjustmentElectric mode
Top lock board4-point air lock
Bottom lock boardDouble side 4-point air lock
Stacker joggerElectric mode
Sample inspectionInspection table with light and monitor
ClutchOMPI, Italy

Electrical system

Inverter15KW Honeywell
PLCOmron Japan
Touch screenDouble screen in feeder and stacker, Delta
ContactorSchneider, France
SwitchesSchneider, France
RelayIdec Japan
Photoelectric SensorsKEYENCE，Omron etc
BreakerLS(LG)
Proximity sensorOmron，ROKO
EncoderOmron
CableLJX
BallastJBK  800W
